| Item | Specification |
|---|---|

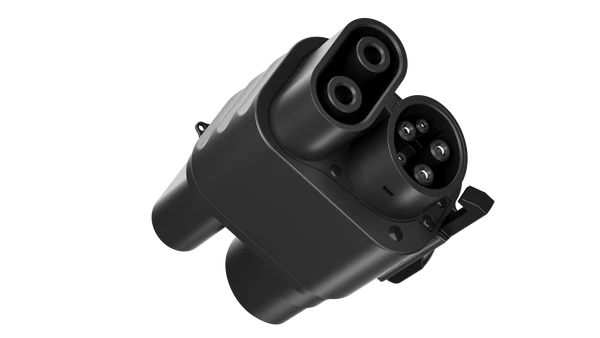

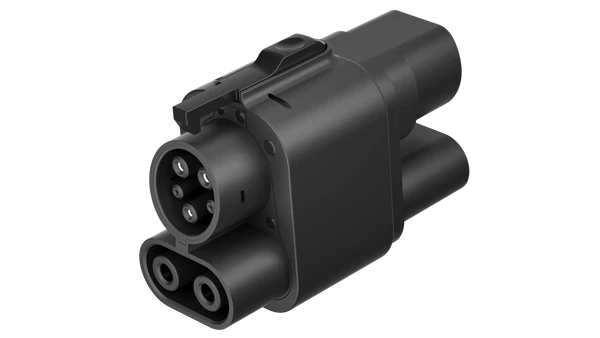

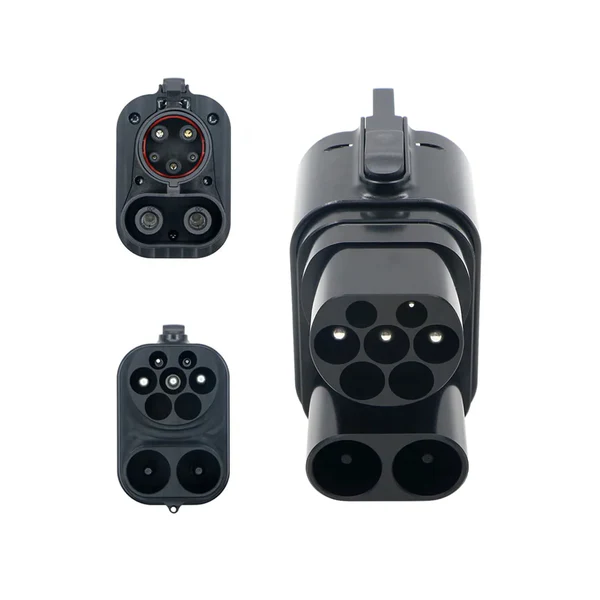

| Product Name | CCS2 to CCS1 DC Adapter |
| Product Type | DC Charging Adapter |
| Input Connector | CCS2 (Charger Side) |
| Output Connector | CCS1 (Vehicle Side) |
| Charging Mode | DC Fast Charging |
| Rated Voltage | Max. 1000V DC |
| Rated Current | Max. 200A / 250A (Optional) |
| Protection Rating | IP54 / IP55 |
| Operating Temperature | -30°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Housing Material | High-strength flame-retardant plastic |
| Safety Protection | Temperature monitoring, over-current and over-voltage protection |
| Installation | Plug & Play |
| Applicable Standards | IEC 62196 / SAE J1772 |
| Certifications | CE / TUV (model dependent) |
