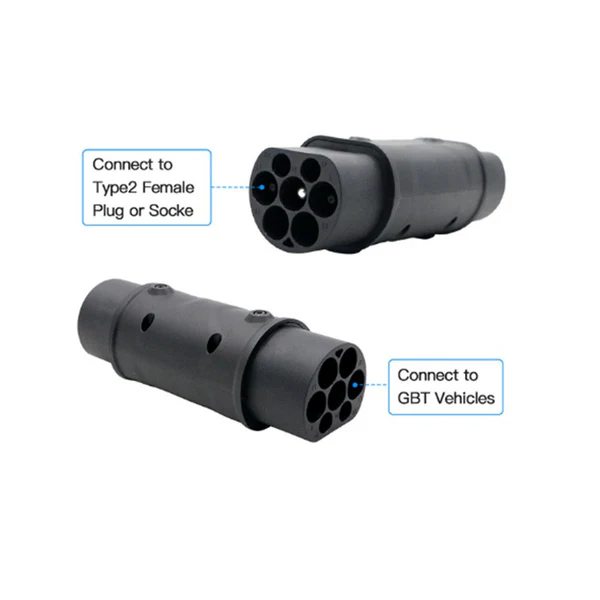

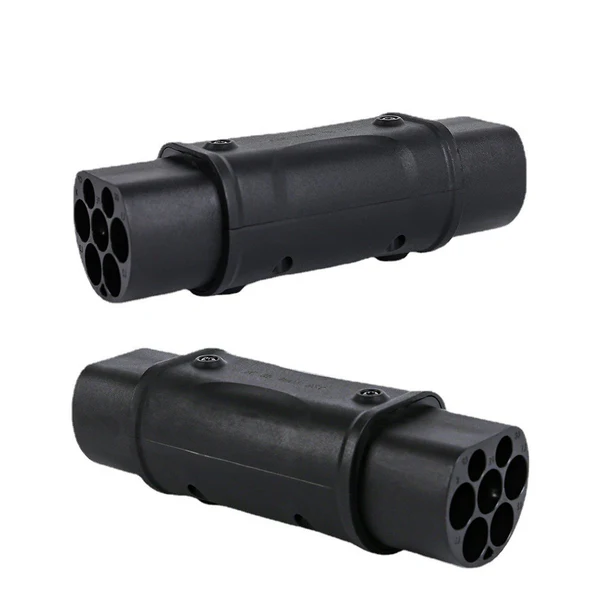

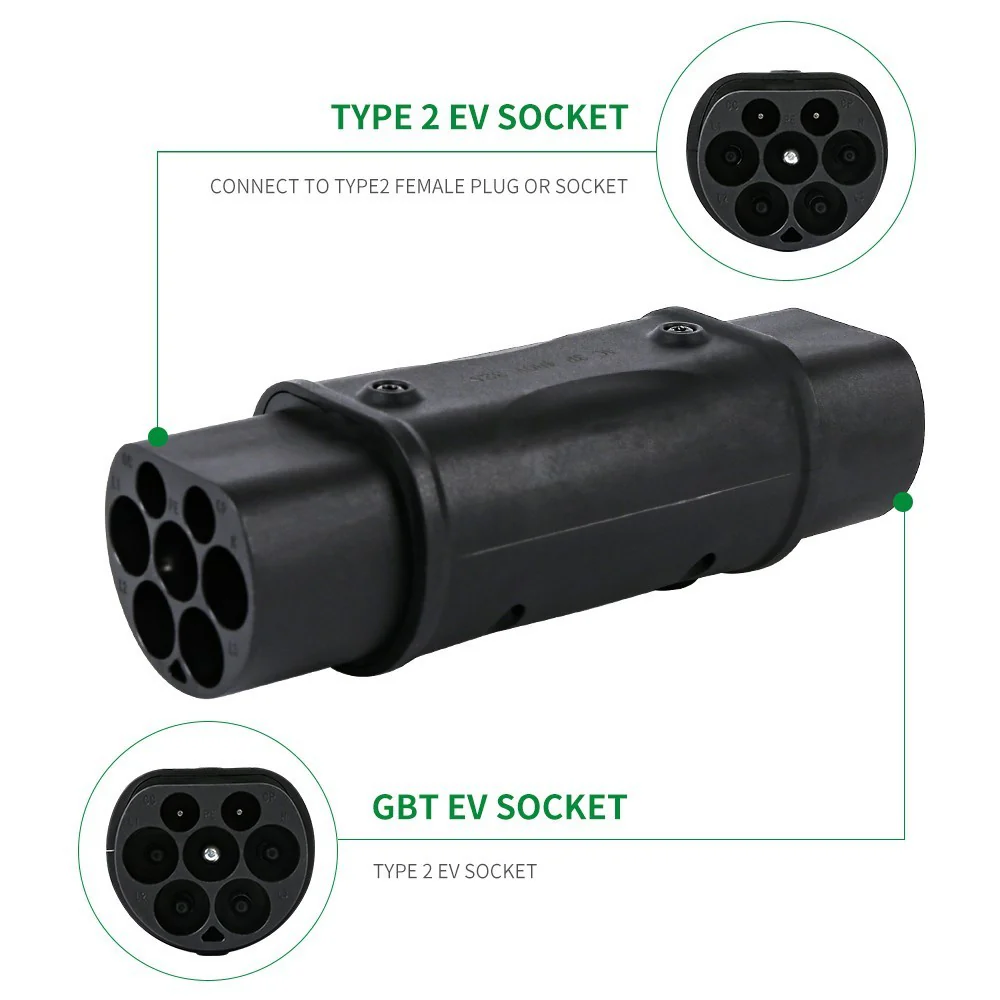

GB/T to Type 2 adapter

Product description :

  • Model: EVAD03
  • Authentication: CE / FCC / RoHS / UL
  • Plug Model: 0
  • Total Length: 0
  • Protection Grade: IP67
  • Optional Current: 32A
  • Shell Fire Rating: UL94V-0
  • Protection Function:
    • Waterproof protection
    • Leakage protection
    • Impact resistance
    • Overcurrent protection
    • Grounding protection
    • Surge protection
    • O/U voltage protection
    • O/U frequency protection
    • Overtemperature protection
  • Voltage: 110-240V
  • Wire Material: Plug and Play

brand :

GOODLINK

Brochure
Get a quote

share :

Features :

  1. Rated Current: 32A
  2. Rated Voltage: 250V
  3. Insulation Resistance: ≥500MΩ (DC500V)
  4. Withstand Voltage: 2500V
  5. Contact Resistance: 0.5mΩ Max
  6. Plastic Fire Rating: UL94V-0
  7. Mechanical Life: More than 10,000 times (No-load insertion and extraction)
  8. Waterproof Rating:
    • IP55 (After insertion)
    • IP54 (Before insertion)
  9. Working Environment: -30℃ ~ +55℃







GB/T to Type 2 adapter
