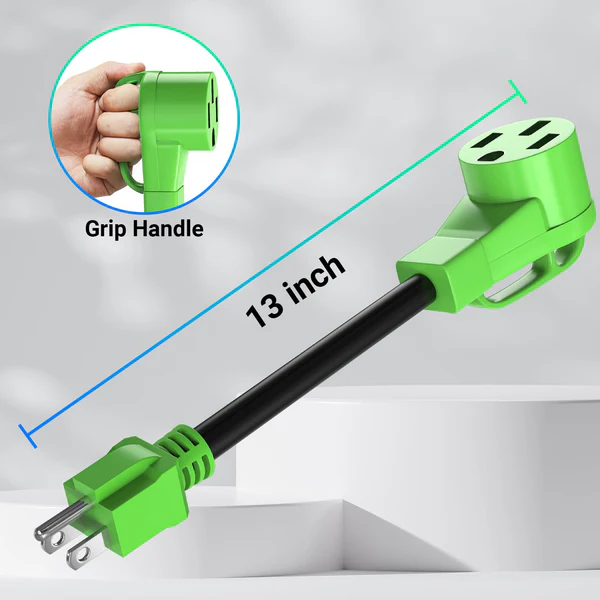

NEMA 14-50R to NEMA 5-15 Plug

Electrical Ratings

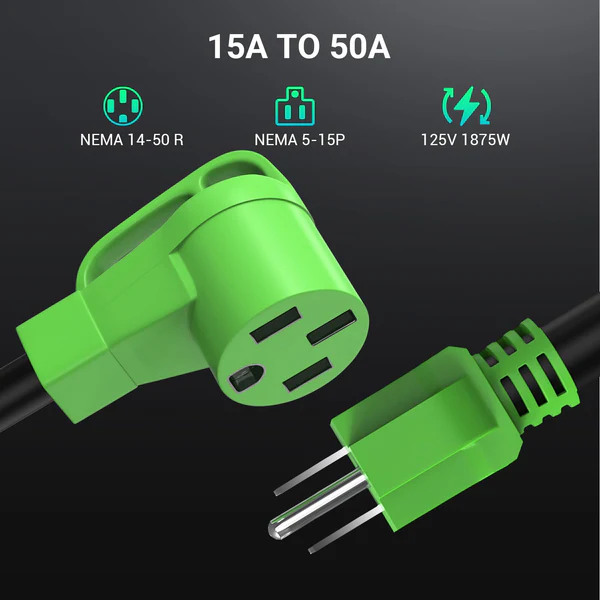

• Input Connector: NEMA 14-50R

• Output Plug: NEMA 5-15P

• Rated Voltage: 125V / 250V AC

• Rated Current: Max. 15A

• Frequency: 50 / 60 Hz

• Maximum Power: Up to 1875 W (125V × 15A)

• Contact Resistance: ≤ 5 mΩ

• Insulation Resistance: ≥ 100 MΩ

• Withstand Voltage: 1500 VAC / 1 minute

 Note: Although the NEMA 14-50 receptacle is rated for 50A, the output is limited to 15A according to the NEMA 5-15 standard.
